Sivers Wireless

Wireless Products

From individual RFICs to ready-to-go modules, our components give your products a technical edge, while our evaluation kits take the guesswork out of development.

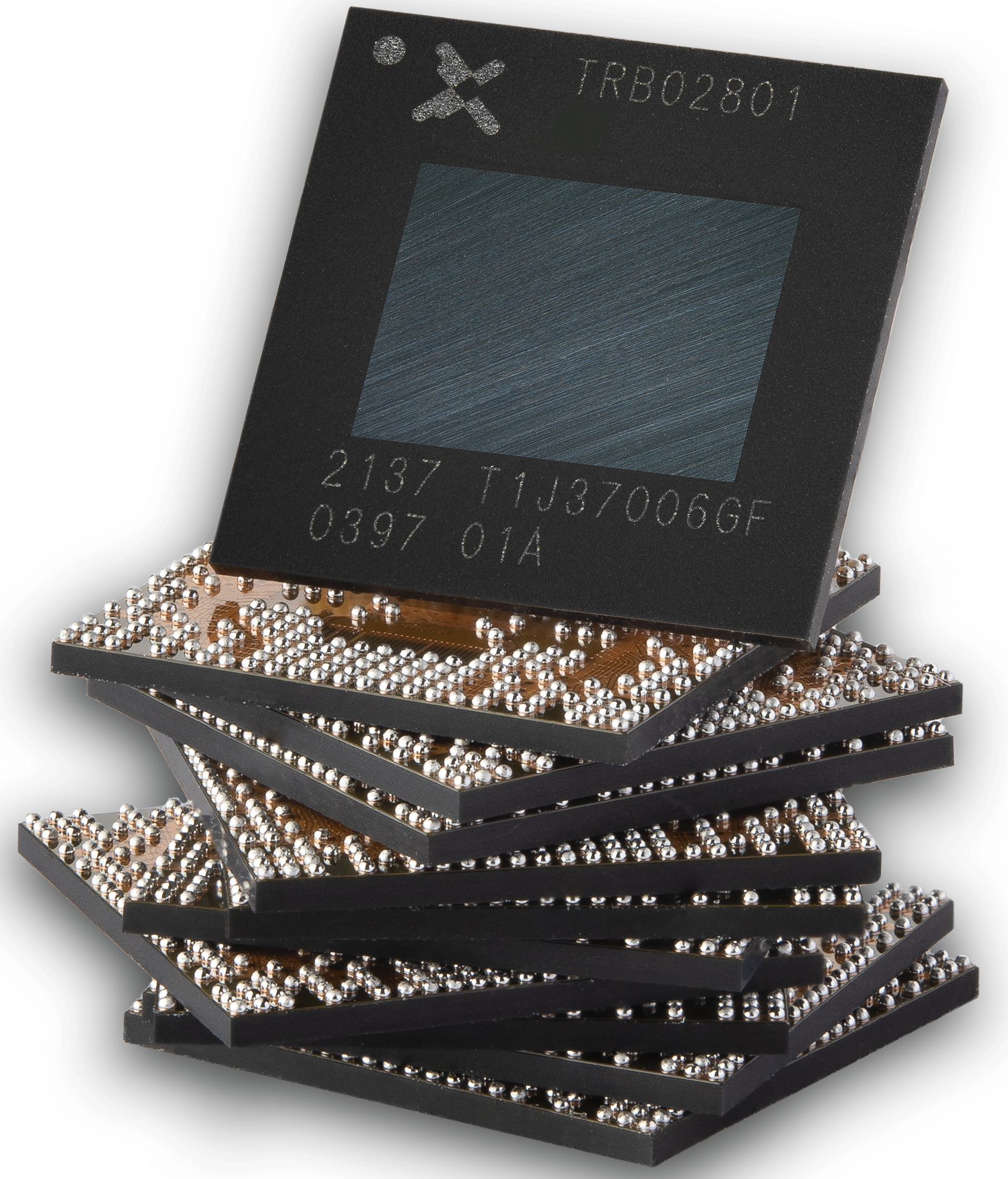

5G and WiGig RFICs

A broad range of Radio Frequency Integrated Circuits (RFICs) for use in both licensed and unlicensed frequencies, from 24GHz to 71GHz.

All Sivers RFICs support high data rates with superior performance in a small form factor and are highly robust, capable of operating in temperatures from -40c to +85c.

Click below for full technical specifications:

Learn More

RF Modules

The simplest way to add wireless connectivity to your product – pre-tested and tuned.

All modules integrate high-performance beamforming transceiver IC, antenna arrays, low pass filters, and base-band interface.

Click below for full technical specifications:

Learn More

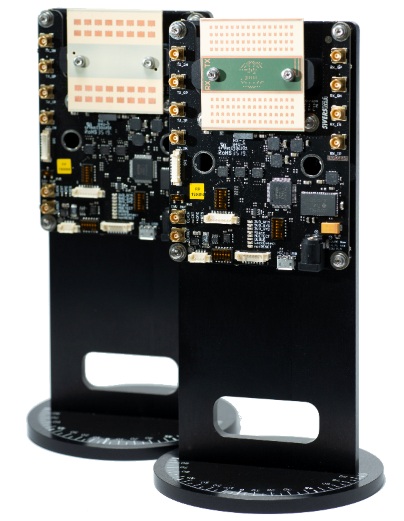

Evaluation Kits

Our evaluation kits allow you to quickly assess the RF aspect of your 5G mmWave system.

Minimize development time and product cost while significantly reducing time to market. Our test platform offers an integrated solution with well-defined interfaces.

Click below for full technical specifications:

Learn More

Frequently asked questions

What is the TRX BF/01?: It is a complete 16RX + 16TX beam forming RF transceiver supporting the frequency band 57-71GHz.
What is the architecture used in the TRX BF/01?: It is a Zero-IF topology ie 16 RF in/out and analog base band I/Q in/out.
What is the main targeted application for TRX BF/01?: The Transceiver is targeting data and telecommunication infrastructure solutions for unlicensed 5G mm-wave use cases.
Does the TRX BF/01 have any internal calibration routines?: The TRX BF/01 includes support for DC offset, LO leakage and IQ calibration. It includes an auxiliary ADC, supporting various external functions, e.g. power and temperature measurements as well as production test support.
What is the size of the TRX BF/01 package?: 1.26×1.26cm.
TRX BF/01: The beam book states 64 phase vectors can be stored. Can you describe what each vector consists of and the process of importing our own?: Regarding the beambook we will give you a short explanation for now, hopefully soon we can provide you with a user manual describing this in more details: The beam book file consists of a matrix of the form 16 columns and 64 rows. Each column contains information to the corresponding antenna how the phase shifts should stand (note that the beambook is reversed ie column 0 controls antenna patch 16) and each row contains one of 64 possible beams that the memories may contain. Each cell can thus have values from 0x0000 to 0x3F3F.
What packaging technology does TRX BF/01 use?: It uses embedded wafer level ball grid array (eWLB) package.
What is the TRX BF/02?: It is a complete 16RX + 16TX beam forming RF transceiver supporting the frequency band 24-29.5 GHz.
What is the architecture used in TRX BF/02?: It is a Zero-IF topology ie 16 RF in/out and analog base band I/Q in/out.
What is the main targeted application for TRX BF/02?: The Transceiver is targeting data and telecommunication infrastructure solutions for unlicensed 5G mm-wave use cases.
Does the TRX BF/02 have any internal calibration routines?: The TRX BF/02 includes support for DC offset, LO leakage and IQ calibration. It includes an auxiliary ADC, supporting various external functions, e.g. power and temperature measurements as well as production test support.
What is the size of the TRX BF/02 package?: 1.26×1.26cm.
TRX BF/02: The beam book states 64 phase vectors can be stored. Can you describe what each vector consists of and the process of importing our own?: Regarding the beambook we will give you a short explanation for now, hopefully soon we can provide you with a user manual describing this in more details: The beam book file consists of a matrix of the form 16 columns and 64 rows. Each column contains information to the corresponding antenna how the phase shifts should stand (note that the beambook is reversed ie column 0 controls antenna patch 16) and each row contains one of 64 possible beams that the memories may contain. Each cell can thus have values from 0x0000 to 0x3F3F.
What packaging technology does TRX BF/02 use?: It uses embedded wafer level ball grid array (eWLB) package.
How many polarisations can the chip AFE VM 2Q 275/295 support?: It can support two polarisations.
How much power does the chip AFE VM 2Q 275/295 consume?: Please contact [email protected] for further assistance.
What packaging technology does the chip AFE VM 2Q 275/295 use?: It uses Wafer-level chip scale packaging (WL-CSP) technology.
Does the chip AFE VM 2Q 275/295 have it’s own clock synthesiser, up/down converter?: No. This is an analog beamformer IC which requires signals at 5G NR frequencies (24 to 29 GHz).
Do I need to sign an NDA to get the datasheet for AFE VM 2Q 275/295 ?: Yes.
Does one chip AFE VM 2Q 275/295 cover the whole 5G NR frequency range from 24.25 to 29.5 GHz?: No. Two chips are needed for this. AFEVM2Q275 covers 24.25-27.5 GHz and AFEVM2Q295 covers 26.5-29.5 GHz.
What is the difference between BFM06010 and BFM06011?: Internal ref clk (BFM06011) and external ref clk (BFM06010).
What is the interface to the BFM06010 and BFM06011?: It is differential analog I/Q interface.
Can we connect an external LO to BFM06010 and BFM06011?: No.
What is the signal interface to the EVK02001?: It is differential analog base band, zero-IF, I/Q interface.
What kind of connectors are available on the EVK02001 for the analog base band signal?: There are 4 TX and 4 RX mcx female type of connectors.
Can we modify the EVK02001 to be used with an external x-tal?: Yes, instruction for modification can be found in the user manual for EVK02001.
What control interfaces are available and excess thru the EVK02001?: There is a USB, SPI and 2xGPIO connector interfaces available for direct access to registers. All connector pinning are described in the user manual for EVK02001.
Does the EVK02001 come with a graphical user interface?: Yes, where you can set all the registers.
Is there a beam book available for EVK02001 and what is the size?: Yes, there is a beam book available and the size is 64 different beams.
What is included in the EVK02001 kit?: Python code for controlling the EVK. Power adaptor, USB cable, BFM02003 (radio module) and MB1 (mother board). User manual and 2 hour free support.
Why do I need the EVK02001?: To quickly and easy evaluate RF performance of the TRX BF02 transceiver together with the antenna.
EVK02001: Can I get the schematic for MB1 and RF module to be used as a reference design?: Yes, but you need to sign a support agreement for that.
Do I need to sign an NDA to get the EVK02001?: Yes.
EVK02001: What is the bandwidth of the RF signal?: It is 2GHz ie 1GHz I/Q.
EVK02001: Can we measure the chip temperature?: Yes.
What is the max power consumption of the EVK02001?: 13W.
Can the EVK02001 use an external LO input?: No. This is not possible in the standard configuration.
What is the signal interface to the EVK06002?: It is differential analog base band, zero-IF, I/Q interface.
What kind of connectors are available on the EVK06002 for the analog base band signal?: There are 4 TX and 4 RX mcx female type of connectors.
Can we modify the EVK06002 to be used with an external x-tal?: Yes, instructions for modification can be found in the EVK user manual.
What control interfaces are available and excess thru the EVK06002?: There is a USB, SPI and 2xGPIO connectors interfaces available for direct access to registers. All connector pinning are described in the EVK user manual.
Does the EVK06002 come with a graphical user interface?: Yes, where you can set all the registers.
Is there a beam book available for EVK06002 and what is the size?: Yes, there is a beam book available and the size is 64 different beams.
What is included in the EVK06002 kit?: Python code for controlling the EVK. Power adaptor, USB cable, BFM6010 (radio module) and MB1 (mother board). User manual and 2 hour free support.
Why do I need the EVK06002?: To quickly and easy evaluate RF performance of the TRX BF01 transceiver together with the antenna.
EVK06002: Can I get the schematic for MB1 and RF module to be used as a reference design?: Yes, but you need to sign a support agreement for that.
Do I need to sign an NDA to get the EVK06002?: Yes.
EVK06002: What is the bandwidth of the RF signal?: It is 2GHz ie 1GHz I/Q.
EVK06002: Can we measure chip temperature?: Yes.
What is the max power consumption of the EVK06002: 13W.
How many full channels can we measure with this EVK06002?: 6 full 2GHz wigig channels, 57-71GHz.
EVK06002: Do we have access to some hi level c-code?: No, for that you need to sign a supply agreement.
Can the EVK06002 use an external LO input?: No. This is not possible in the standard configuration.
Can the EVK06002 provide LO output?: No. This is not possible in the standard configuration.

High data rates

Reliability

Easily integrated

Product Launch

BFM06009

Wireless Products

Wireless applications

Fixed Wireless Access

5G Open RAN

V2X

Mobile Backhaul

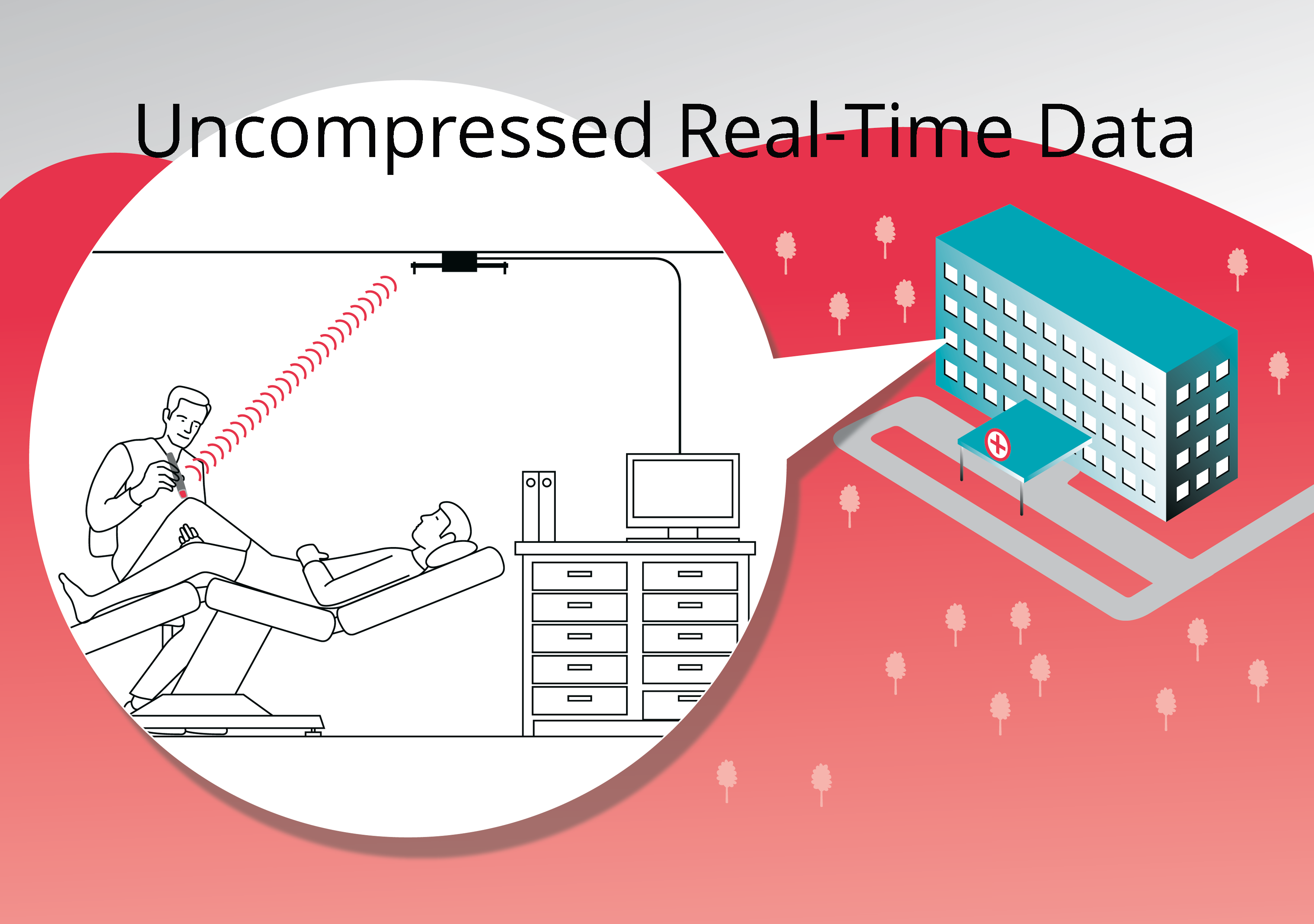

Uncompressed Realtime Data
