4λ O-band CW DFB Laser Chipset

Edge-emitting DFB laser diode chips, designed for CW use in CWDM4 with external modulation







A chipset of 4 x single mode, edge-emitting DFB laser diode chips, designed for CW use in CWDM4 with external modulation.

The laser design is a ridge waveguide (RWG) grown on n-type substrate with multi-quantum well (MQW) active layers and distributed-feedback (DFB) ebeam lithography grating layer.

The devices are compatible with non-hermetic assembly, with facets coated with an anti-reflection (AR) coating at the front and high-reflection (HR) coating at the back.

This product is available to be purchased as a singulated die in Gel Pak or tape.



Key features

  • >45mW CW operation
  • Operating temp 20°C to 70°C
  • AlInGaAs MQW active region
  • Suitable for non-hermetic applications





Applications

  • Silicon Photonics
  • 400G / 800G Ethernet
  • Datacenter & Enterprise Networking

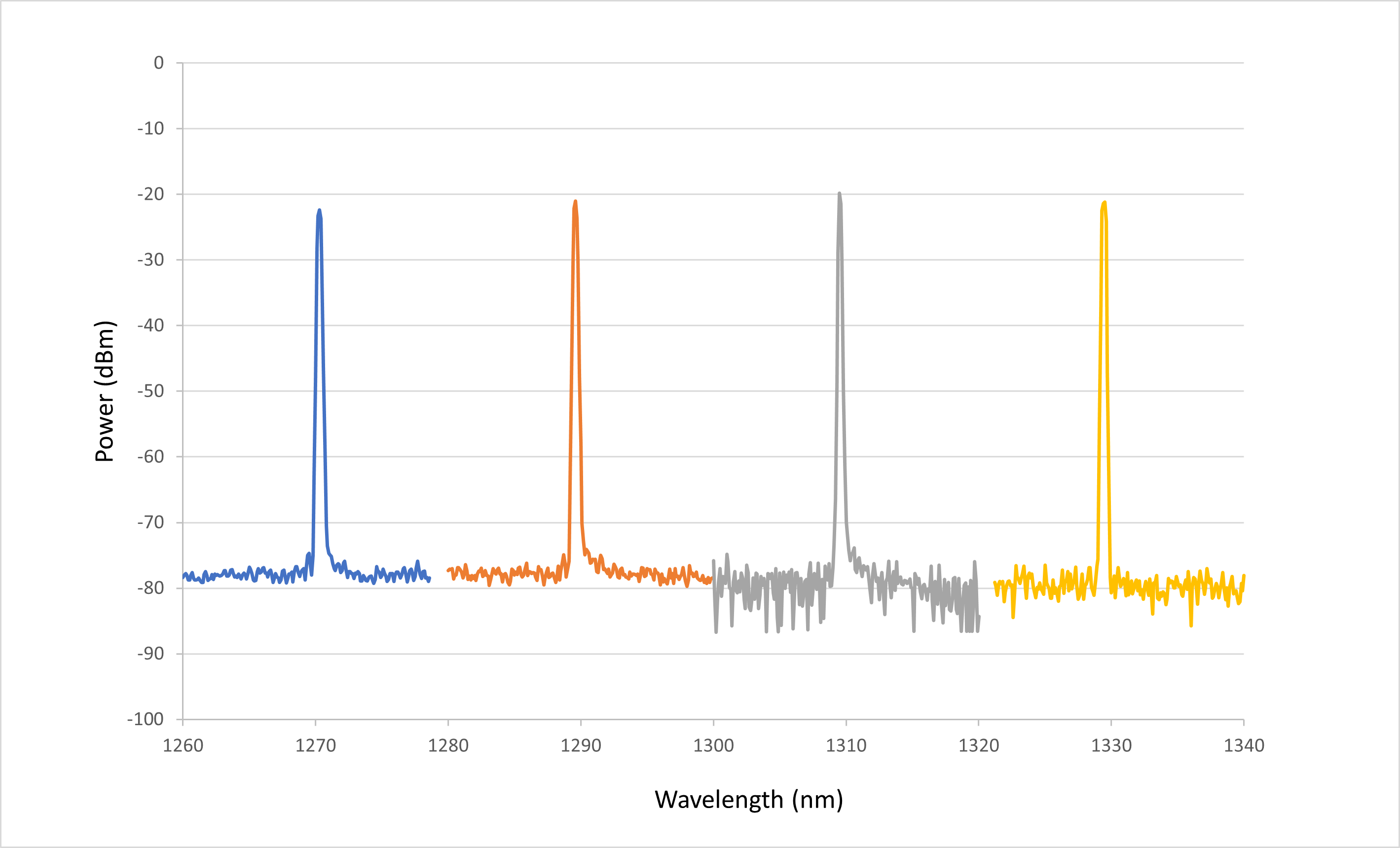

Fig. 1. Optical Spectra
Fig. 1. Optical Spectra

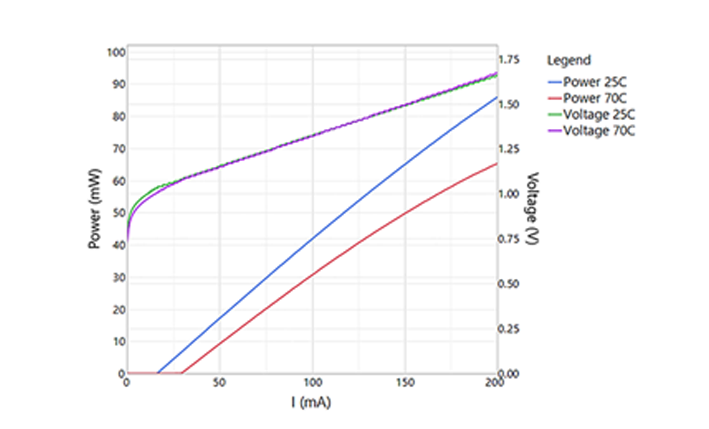

LIV Curve
Fig. 2. LIV Curves
