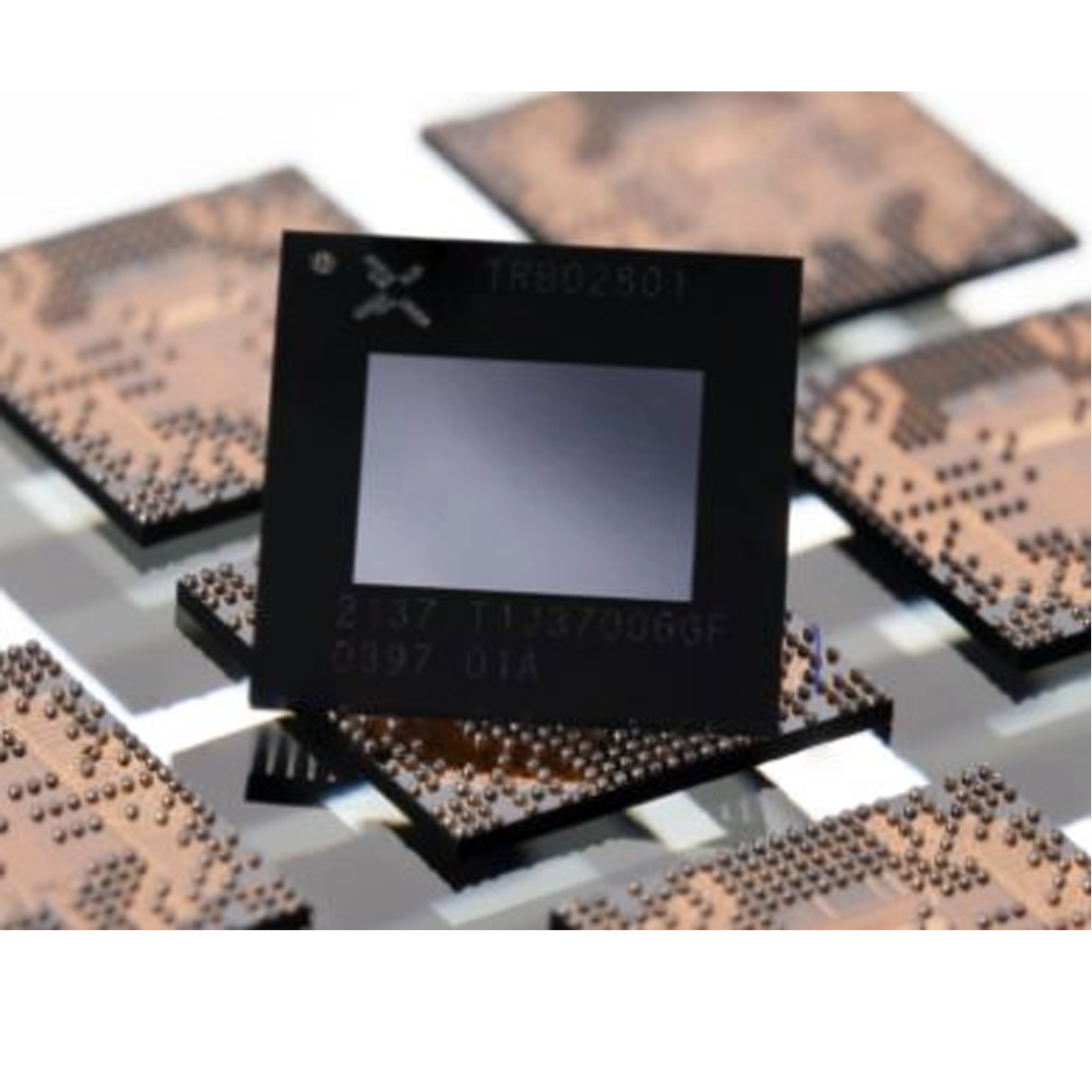

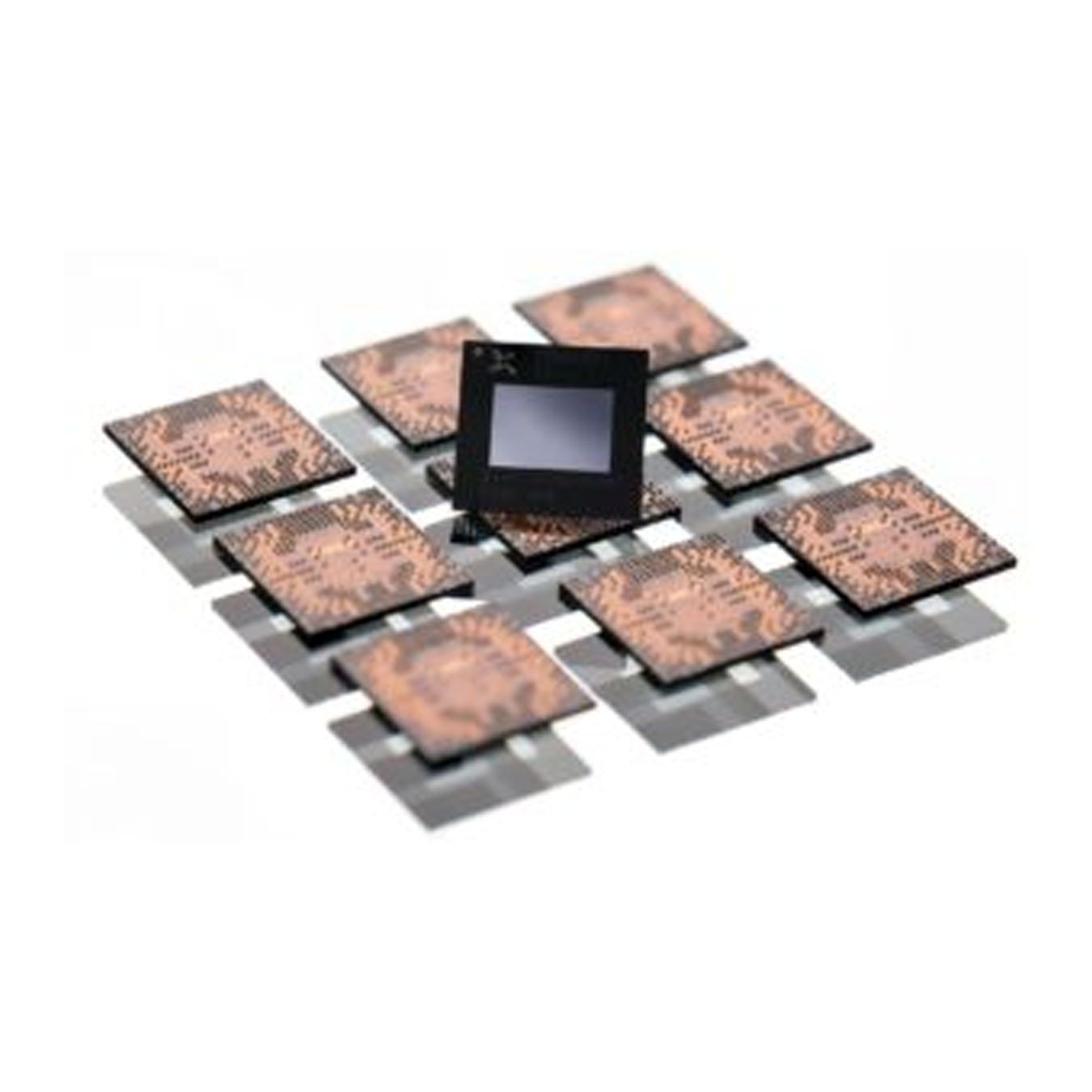

TRB02801

28 GHz Radio Frequency Integrated Circuit (RFIC)
Operating from 24.25 to 29.5 GHz

The TRB02801 support the full frequency range from 24.25 to 29.5 GHz with speeds up to 5 Gbit/s. The unique level of integration enables support for different markets and frequency bands using the same hardware.

TRB02801 is a 32 channel beam forming transceiver Radio Frequency Integrated Circuit (RFIC). With support for both Zero-IF and IF baseband interface, it may easily be integrated to your product with any 5G mmWave modem.

Get Your Product Brief

Overview of our RFICs and BFICs

NameDescriptionApplication AreaFrequency
Stampede2731Tx analog beamformer, dual beam dual polarization, 4 channels per pol. RF in RF outSATCOM27.5 GHz-31 GHz
Stampede2731LPLow power version of Stampede2731SATCOM27.5 GHz-31 GHz
Blueway1721Rx analog beamformer, dual beam dual polarization, 4 channels per pol. RF in RF outSATCOM17.7 GHz-21.2 GHz
Summit2427e2T2R analog beamformer, dual polarization, 4 Tx/Rx channels per pol. RF in RF out5G, FWA, Radar24.25 GHz-27.5 GHz
Summit2629e2T2R analog beamformer, dual polarization, 4 Tx/Rx channels per pol. RF in RF out5G, FWA, Radar24.25 GHz-29.5 GHz
TRB028012T2R analog beamformer, dual polarization, 16 Tx/Rx channels per pol. Includes UDC and synthesiser in same IC. IF IN, RF out5G, FWA, Radar24.25 GHz-29.5 GHz
Skyline2429e24.25 GHz-29.5 GHz
TRXBF021T1R analog beamformer, 16 Tx/Rx channels. Includes UDC and synthesiser in same IC. IF IN, RF out5G, FWA, Radar24.25 GHz-29.5 GHz
Summit37412T2R analog beamformer, dual polarization, 4 Tx/Rx channels per pol. RF in RF out5G, FWA37 GHz-41 GHz
TRB039012T2R analog beamformer, dual polarization, 16 Tx/Rx channels per pol. Includes UDC and synthesiser in same IC. IF IN, RF out5G, FWA37 GHz-43.5 GHz
TRXBF011T1R analog beamformer for V band, 16 Tx/Rx channels. Includes UDC and synthesiser in same IC. IF IN, RF out5G, FWA, Radar, Track to Train57 GHz-71 GHz
