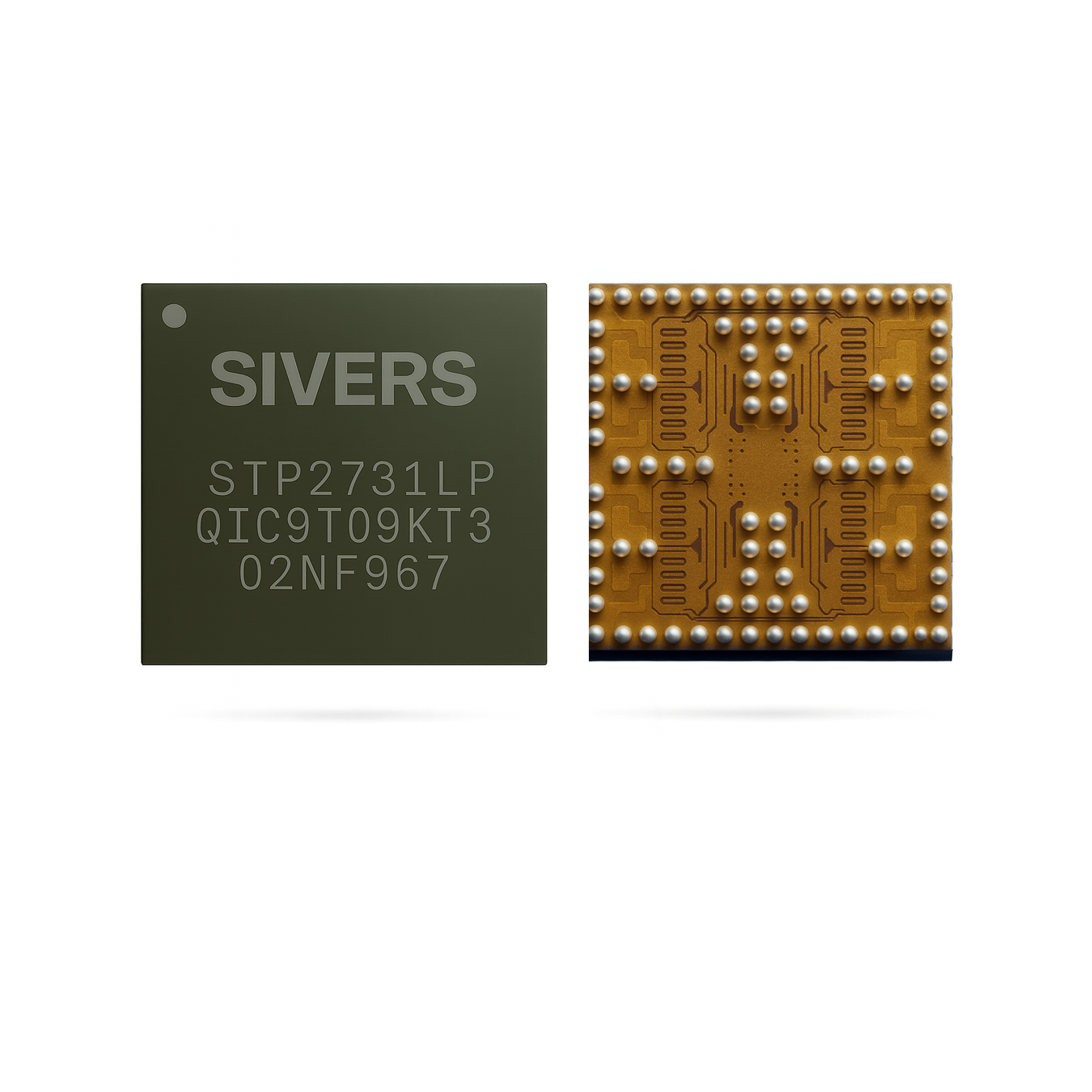

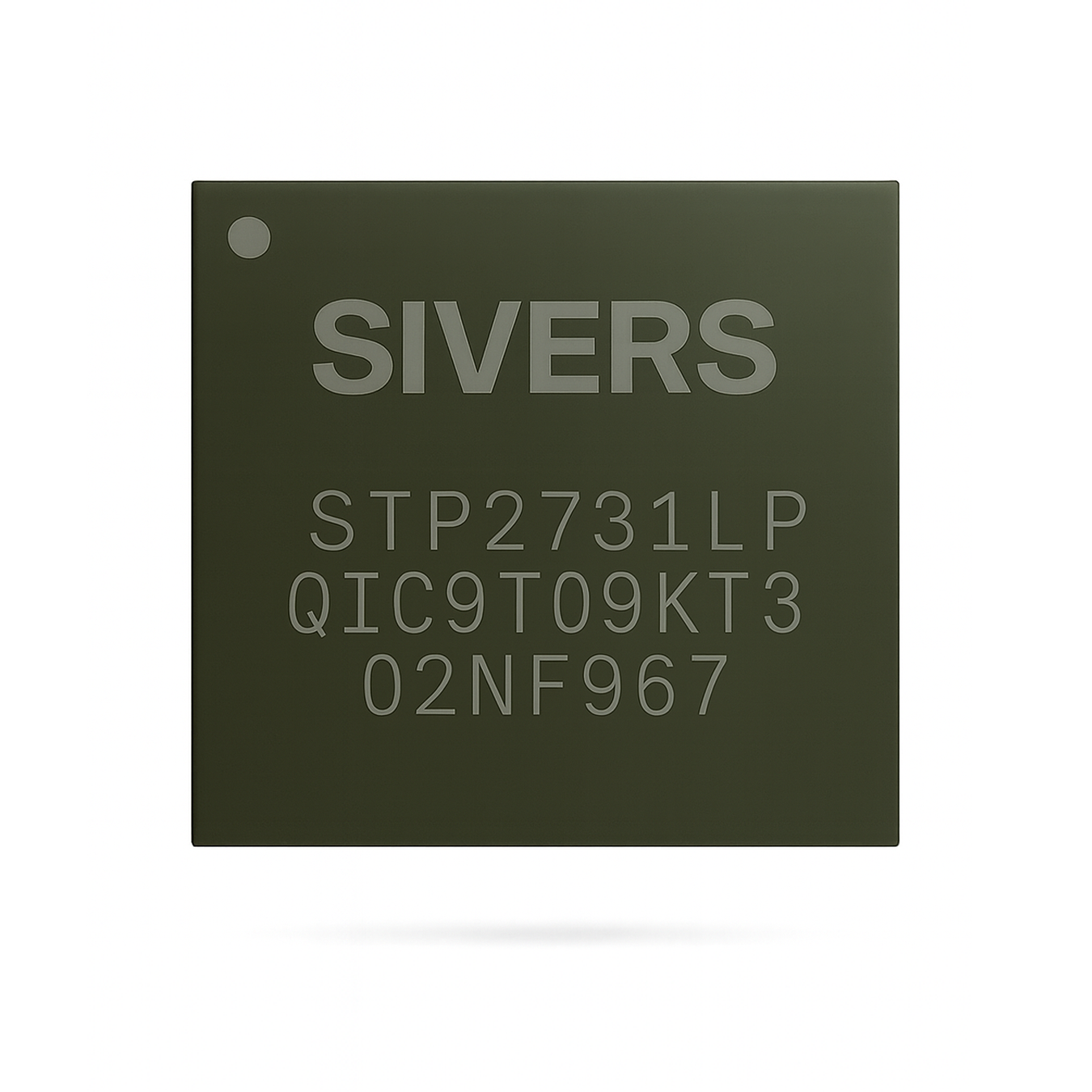

STAMPEDE2731LP

Ka band Tx beamforming front end IC operating from 27.5 GHz to 31 GHz

STAMPEDE2731LP is an 8-channel beam-forming TX front end IC fabricated in RF-Silicon on Insulator (RF-SOI) for use in phased array antennas for SATCOM applications

STAMPEDE2731LP is the reduced output power version of our STAMPEDE2731 and is designed to offer a power-efficient alternative without compromising core performance for applications where reduced output power and thermal density are critical.

It has similar features as STAMPEDE2731:

  • 8 channels supporting dual polarisation (4 channels per pol)
  • High linear output power, and efficiency.
  • Reconfigurable and independent two beam directions
  • Ultra-low leakage in standby and low power consumption in active mode
  • 6-bit full-360° Phase Shifting
  • On chip beam table memory
  • Extensive On-chip Temperature and Power Sensing
  • High-Speed SPI with Large On-Chip Beam Table Storage
  • Chip-Scale Package compatible with low-cost PCB manufacturing
  • Support for Large-Scale Arrays through Multiple Chip-Addressing Modes

Overview of our RFICs and BFICs

NameDescriptionApplication AreaFrequency
Stampede2731Tx analog beamformer, dual beam dual polarization, 4 channels per pol. RF in RF outSATCOM27.5 GHz-31 GHz
Stampede2731LPLow power version of Stampede2731SATCOM27.5 GHz-31 GHz
Blueway1721Rx analog beamformer, dual beam dual polarization, 4 channels per pol. RF in RF outSATCOM17.7 GHz-21.2 GHz
Summit2427e2T2R analog beamformer, dual polarization, 4 Tx/Rx channels per pol. RF in RF out5G, FWA, Radar24.25 GHz-27.5 GHz
Summit2629e2T2R analog beamformer, dual polarization, 4 Tx/Rx channels per pol. RF in RF out5G, FWA, Radar24.25 GHz-29.5 GHz
TRB028012T2R analog beamformer, dual polarization, 16 Tx/Rx channels per pol. Includes UDC and synthesiser in same IC. IF IN, RF out5G, FWA, Radar24.25 GHz-29.5 GHz
Skyline2429e24.25 GHz-29.5 GHz
TRXBF021T1R analog beamformer, 16 Tx/Rx channels. Includes UDC and synthesiser in same IC. IF IN, RF out5G, FWA, Radar24.25 GHz-29.5 GHz
Summit37412T2R analog beamformer, dual polarization, 4 Tx/Rx channels per pol. RF in RF out5G, FWA37 GHz-41 GHz
TRB039012T2R analog beamformer, dual polarization, 16 Tx/Rx channels per pol. Includes UDC and synthesiser in same IC. IF IN, RF out5G, FWA37 GHz-43.5 GHz
TRXBF011T1R analog beamformer for V band, 16 Tx/Rx channels. Includes UDC and synthesiser in same IC. IF IN, RF out5G, FWA, Radar, Track to Train57 GHz-71 GHz
