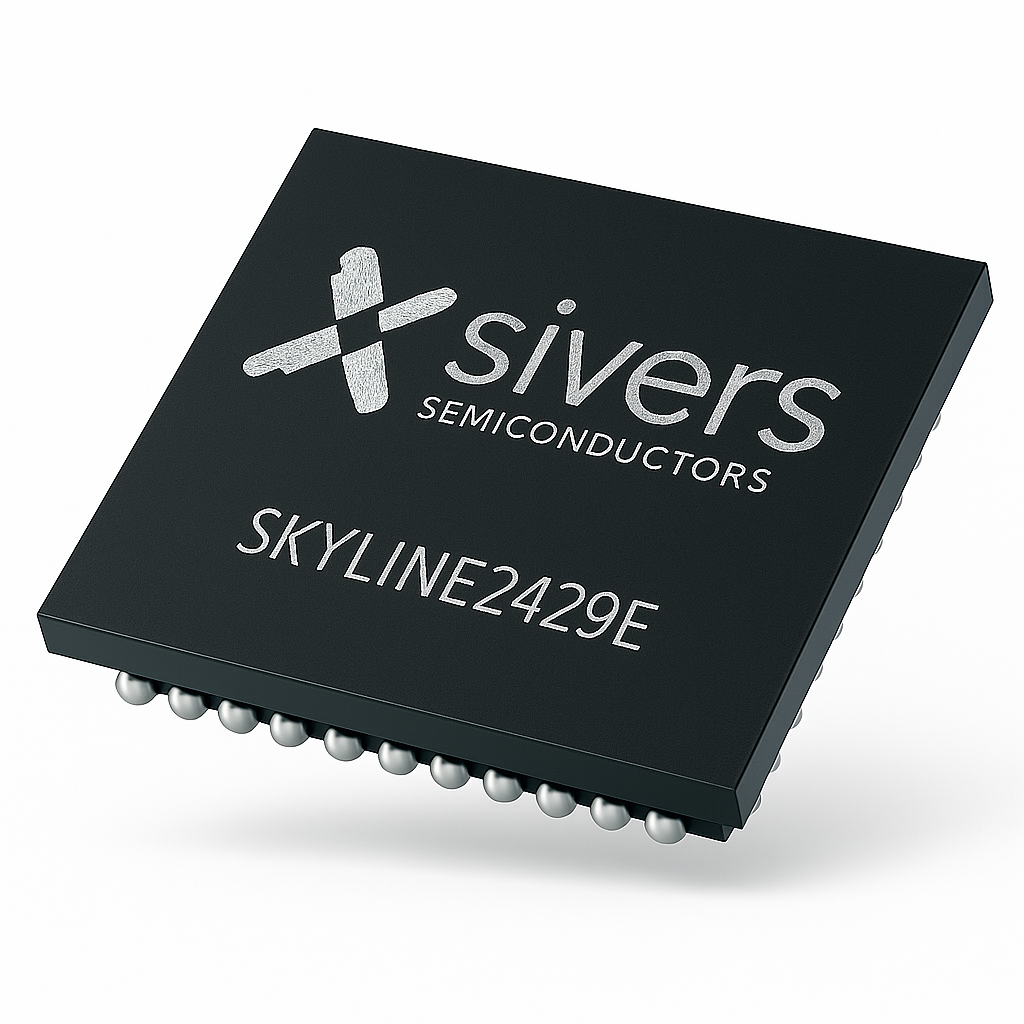

SKYLINE2429e
mmWave Up converter/Down converter operating from 24.25 GHz to 29.5 GHz
SKYLINE2429e is a UDC ideally suited to operate with beamformer devices in phased array applications.
Features:
- Complete TX and RX frequency conversion chains
- RF and LO switching to enable TDD operation for 5G
- Integrated LO frequency doubler
- Inbuilt IQ combining
Overview of our RFICs and BFICs
| Name | Description | Application Area | Frequency |
|---|---|---|---|
| Stampede2731 | Tx analog beamformer, dual beam dual polarization, 4 channels per pol. RF in RF out | SATCOM | 27.5 GHz-31 GHz |
| Stampede2731LP | Low power version of Stampede2731 | SATCOM | 27.5 GHz-31 GHz |
| Blueway1721 | Rx analog beamformer, dual beam dual polarization, 4 channels per pol. RF in RF out | SATCOM | 17.7 GHz-21.2 GHz |
| Summit2427e | 2T2R analog beamformer, dual polarization, 4 Tx/Rx channels per pol. RF in RF out | 5G, FWA, Radar | 24.25 GHz-27.5 GHz |
| Summit2629e | 2T2R analog beamformer, dual polarization, 4 Tx/Rx channels per pol. RF in RF out | 5G, FWA, Radar | 24.25 GHz-29.5 GHz |
| TRB02801 | 2T2R analog beamformer, dual polarization, 16 Tx/Rx channels per pol. Includes UDC and synthesiser in same IC. IF IN, RF out | 5G, FWA, Radar | 24.25 GHz-29.5 GHz |
| Skyline2429e | 24.25 GHz-29.5 GHz | ||
| TRXBF02 | 1T1R analog beamformer, 16 Tx/Rx channels. Includes UDC and synthesiser in same IC. IF IN, RF out | 5G, FWA, Radar | 24.25 GHz-29.5 GHz |
| Summit3741 | 2T2R analog beamformer, dual polarization, 4 Tx/Rx channels per pol. RF in RF out | 5G, FWA | 37 GHz-41 GHz |
| TRB03901 | 2T2R analog beamformer, dual polarization, 16 Tx/Rx channels per pol. Includes UDC and synthesiser in same IC. IF IN, RF out | 5G, FWA | 37 GHz-43.5 GHz |
| TRXBF01 | 1T1R analog beamformer for V band, 16 Tx/Rx channels. Includes UDC and synthesiser in same IC. IF IN, RF out | 5G, FWA, Radar, Track to Train | 57 GHz-71 GHz |
