EVK06005
60 GHz RF Module EVK

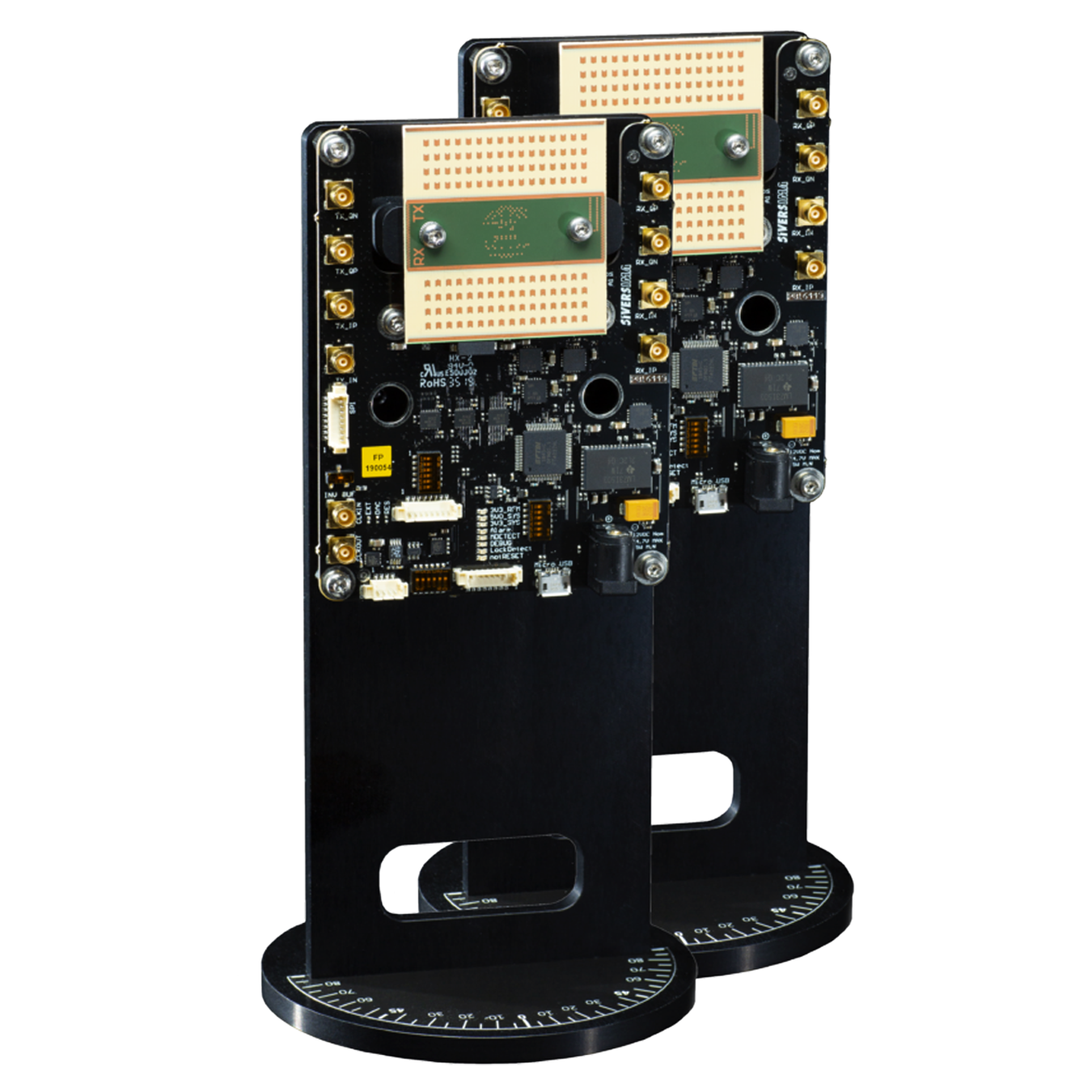

This Evaluation Kit (EVK) is designed to help you validate the RF part of your unlicensed 5G mmWave system. With an easy Plug and Play and a minimum of configuration activities it is easily controlled through standardized interfaces. Configuration support and user guidelines are included.
The EVK06005 provides an opportunity to utilise three 60 GHz RF modules in your design validation.
Technical Specifications
- The RF modules supported by the EVK06005 are BFM06005, BFM06009 and BFM06010.
- Frequency Range: 57-71 GHz
- Beam steering with integrated patch array antenna
- Including RF Module, Mother Board and Graphical User Interface (GUI)
Overview of our Evaluation Kits & Evaluation Boards
| Name | RF Modules | RFIC | Frequency |
|---|---|---|---|
| EVK02004 | BFM02801 | TRB02801 | 24.25 – 29.50 GHz |
| 128 Element Antenna Array | 26.5 – 29.5 GHz | ||
| SUMMIT2629eEVB | N/A | SUMMIT2629e | 26.5 – 29.5 GHz |
| EVK02001 | BFM02003 (The RF module is not a commercial product, only part of the EVK.) | TRXBF02 | 24.0-29.5 GHz |
| EVK03001 | N/A Contact [email protected] for information | TRB03901 | 37.0 – 43.5 GHz |
| EVK06005 | BFM06005 + BFM06010 + BFM06009 | TRXBF01 | 57-66 GHz / 57-71 GHz |
| EVK06003 | BFM06009 | TRXBF01 | 57-71 GHz |
| EVK06002 | BFM06010 | TRXBF01 | 57-71 GHz |
