ECLIPSE3741™
39 GHz Dual Polarization Phased Array Antenna Module
Operating from 37.0 GHz-41.0 GHz
The 1st Antenna in Package for 5G mmWave infrastructure is here. Enjoy our 39 GHz dual polarization phased array antenna module.

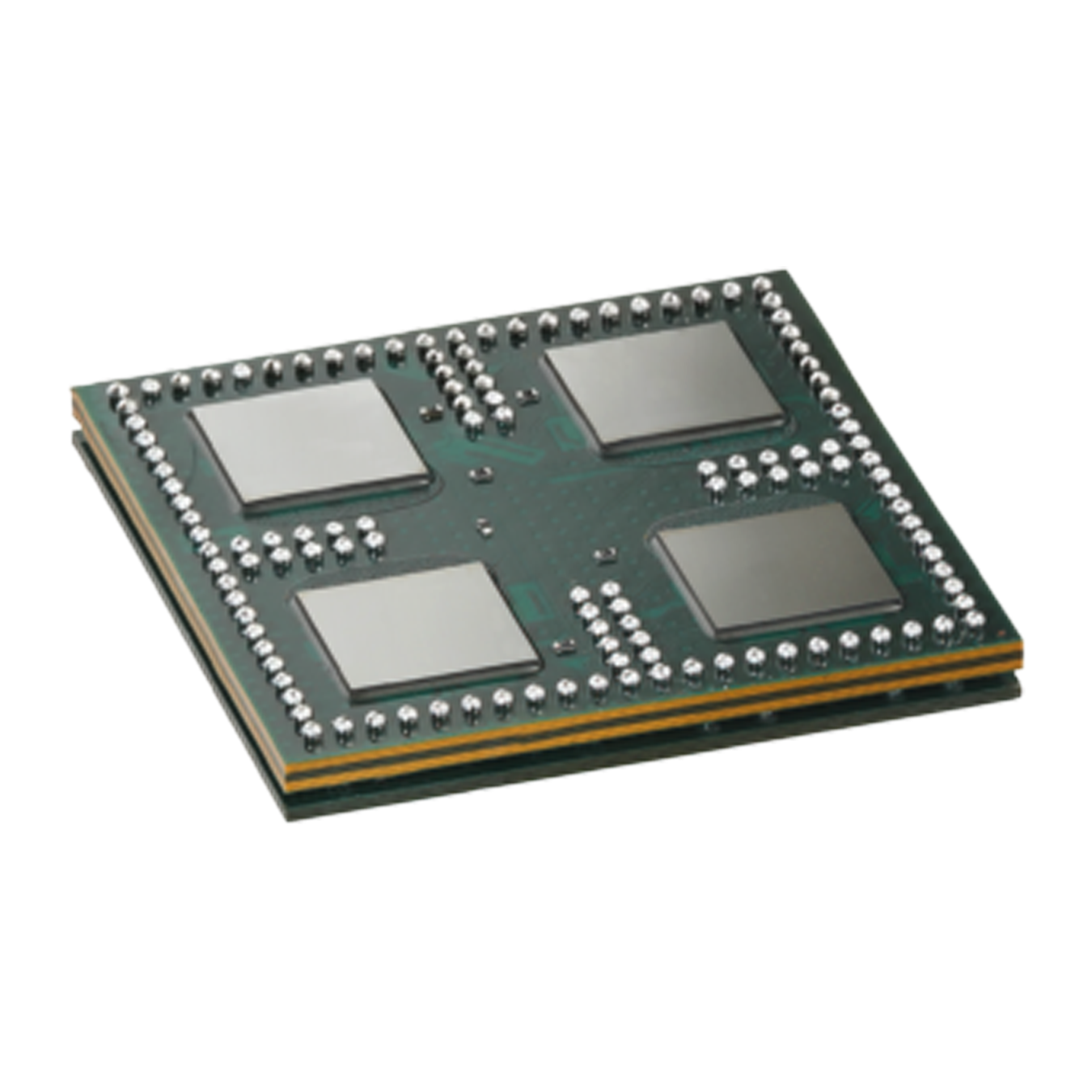

The ECLIPSE 3741™ is a highly integrated 5G beam-former phased array Antenna in Package (AiP) module. Covering FR2 band n260 from 37.0 to 41.0 GHz, it offers exceptionally high linear output power, efficiency, and extreme integration. This AiP module has been designed to enable λ/2 lattice spacing when tiled together for higher EIRP applications. It has also been extensively optimized for heat management.
ECLIPSE3741™ is designed to address the challenges constraining 5G mmWave performance by;
- Easier implementation
- Lower cost
- Compact solution
- Higher data rate FR2 5G system
Product Highlights
- Sixteen-element dual polarization phased array antenna module
- +45 dBm EIRP @3% EVM for full BW 64-QAM OFDM
- Full TX/RX TDD Beam forming RF chain
Overview of our RF Modules
| Name | Description | Application Area | Frequency |
|---|---|---|---|
| BFM02801 | 4×4 antenna array module based on TRB02801. 2T2R, dual polarisation support | 5G, FWA, Radar | 24.25 GHz-29.5 GHz |
| BFM02803 | 4×8 antenna array module based on 2 TRB02801s. 2T2R, dual polarisation support | 5G, FWA, Radar | 24.25 GHz-29.5 GHz |
| BFM06018 | 4×4 antenna array module. Dual polarised, single aperture antenna supporting Tx and Rx on the two polarisations | 5G, FWA, Radar | 57-71 GHz |
| BFM06017 | Low cost version of BFM06010 | 5G, FWA, Radar | 57-71 GHz |
| BFM06010 | 4×16 Tx and Rx subarray module based on TRXBF01. 1D beamsteering support. | 5G, FWA, Radar | 57-71 GHz |
| BFM06009 | 2x2x8 Tx and Rx subarray module based on TRXBF01. 2D beamsteering support. | 5G, FWA, Radar | 57-71 GHz |
| BFM03901 | 4×4 antenna array module based on TRB03901. 2T2R, dual polarisation support | 5G, FWA | 37 GHz-43.5 GHz |
| Eclipse3741 | 4×4 antenna array module based on 4 Summit3741s. Antenna in package. 2T2R, dual polarisation support | 5G, FWA | 37 GHz-41 GHz |
