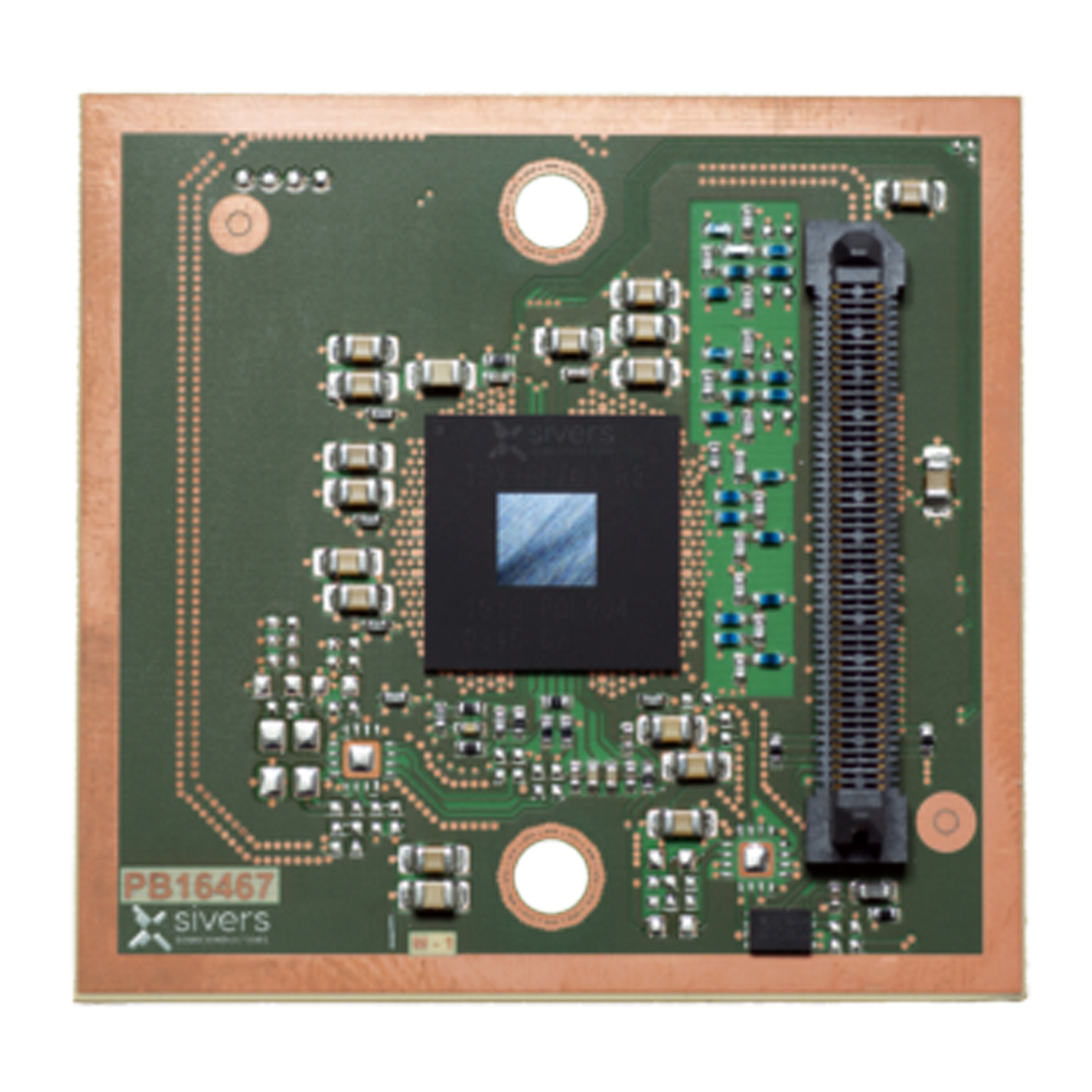

BFM06010
60 GHz RF Module
Operating from 57 GHz to 71 GHz
By combining the market leading performance of the TRXBF01 RFIC with innovative antenna design, you get the flexibility and performance required for large deployments of 60 GHz Fixed Wireless Access (FWA) networks.
Transmitted power of +40 dBm also for the highest data rates with electronic beam steering in one single module enable FWA product deployments in the most diverse applications, with the lowest total cost of ownership.
Key Features
- Transmitted power of +40 dBm
- 90-degree beam steering possibilities horizontally in one single module
Overview of our RF Modules
| Name | Description | Application Area | Frequency |
|---|---|---|---|
| BFM02801 | 4×4 antenna array module based on TRB02801. 2T2R, dual polarisation support | 5G, FWA, Radar | 24.25 GHz-29.5 GHz |
| BFM02803 | 4×8 antenna array module based on 2 TRB02801s. 2T2R, dual polarisation support | 5G, FWA, Radar | 24.25 GHz-29.5 GHz |
| BFM06018 | 4×4 antenna array module. Dual polarised, single aperture antenna supporting Tx and Rx on the two polarisations | 5G, FWA, Radar | 57-71 GHz |
| BFM06017 | Low cost version of BFM06010 | 5G, FWA, Radar | 57-71 GHz |
| BFM06010 | 4×16 Tx and Rx subarray module based on TRXBF01. 1D beamsteering support. | 5G, FWA, Radar | 57-71 GHz |
| BFM06009 | 2x2x8 Tx and Rx subarray module based on TRXBF01. 2D beamsteering support. | 5G, FWA, Radar | 57-71 GHz |
| BFM03901 | 4×4 antenna array module based on TRB03901. 2T2R, dual polarisation support | 5G, FWA | 37 GHz-43.5 GHz |
| Eclipse3741 | 4×4 antenna array module based on 4 Summit3741s. Antenna in package. 2T2R, dual polarisation support | 5G, FWA | 37 GHz-41 GHz |
