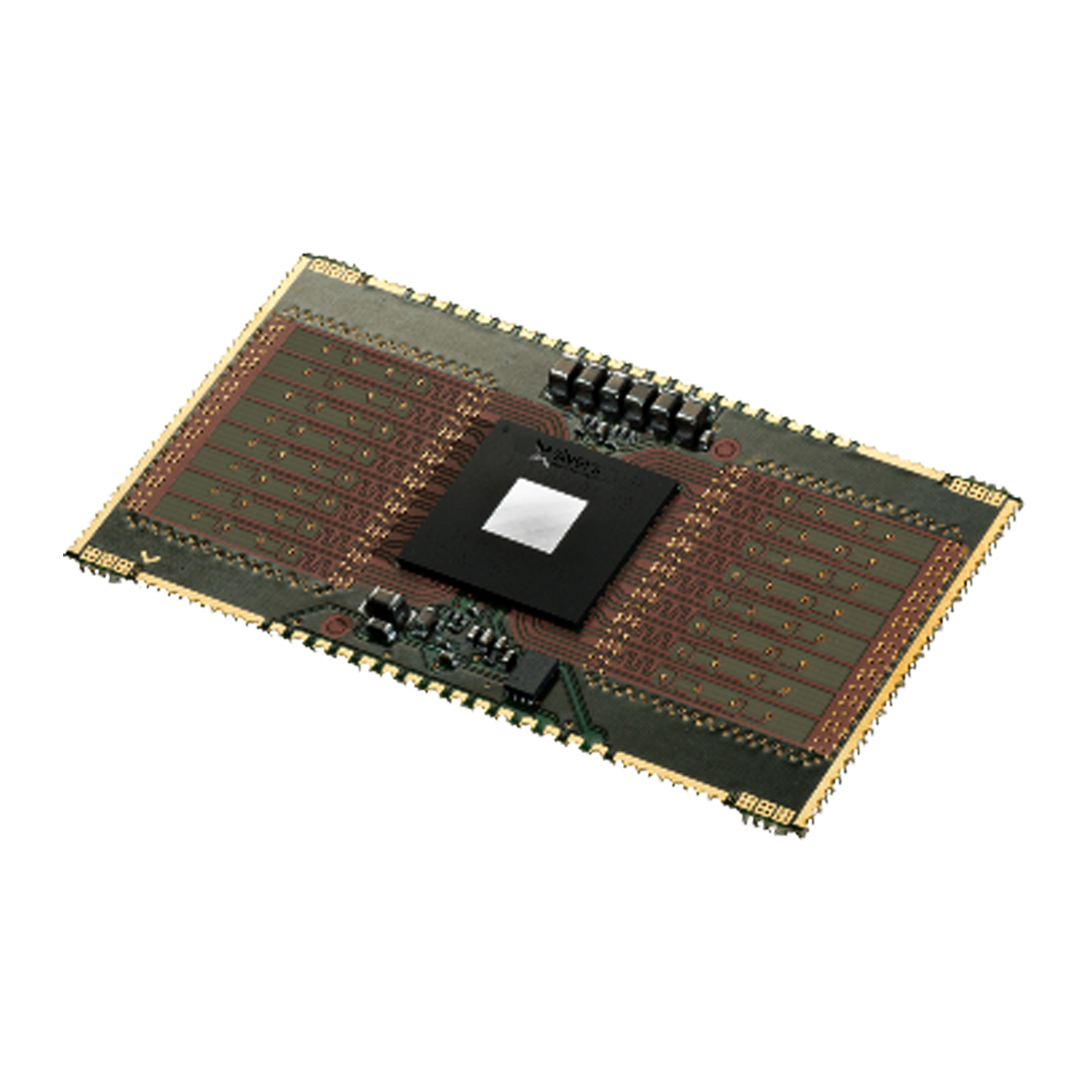

BFM06009
60 GHz RF Module
Operating from 57 GHz to 71 GHz
To help you to meet the requirements of large scale manufacturing of Fixed Wireless Access (FWA) products without sacrificing your competitive performance.
BFM06009 is an innovative RF module covering the full 14 GHz of bandwidth ( 57-71) with beam steering in both azimuth and elevation.
Technical Specifications
- Full 14 GHz of bandwidth (57-71 GHz)
- Beam steering, both azimuth and elevation
Overview of our RF Modules
| Name | Description | Application Area | Frequency |
|---|---|---|---|
| BFM02801 | 4×4 antenna array module based on TRB02801. 2T2R, dual polarisation support | 5G, FWA, Radar | 24.25 GHz-29.5 GHz |
| BFM02803 | 4×8 antenna array module based on 2 TRB02801s. 2T2R, dual polarisation support | 5G, FWA, Radar | 24.25 GHz-29.5 GHz |
| BFM06018 | 4×4 antenna array module. Dual polarised, single aperture antenna supporting Tx and Rx on the two polarisations | 5G, FWA, Radar | 57-71 GHz |
| BFM06017 | Low cost version of BFM06010 | 5G, FWA, Radar | 57-71 GHz |
| BFM06010 | 4×16 Tx and Rx subarray module based on TRXBF01. 1D beamsteering support. | 5G, FWA, Radar | 57-71 GHz |
| BFM06009 | 2x2x8 Tx and Rx subarray module based on TRXBF01. 2D beamsteering support. | 5G, FWA, Radar | 57-71 GHz |
| BFM03901 | 4×4 antenna array module based on TRB03901. 2T2R, dual polarisation support | 5G, FWA | 37 GHz-43.5 GHz |
| Eclipse3741 | 4×4 antenna array module based on 4 Summit3741s. Antenna in package. 2T2R, dual polarisation support | 5G, FWA | 37 GHz-41 GHz |
