128 ELEMENT ANTENNA ARRAY
128-element 5G mmWave (26.5 – 29.5 GHz) dual-polarized beamforming array antenna – Evaluation Kit
5G mmWave Evaluation Kit

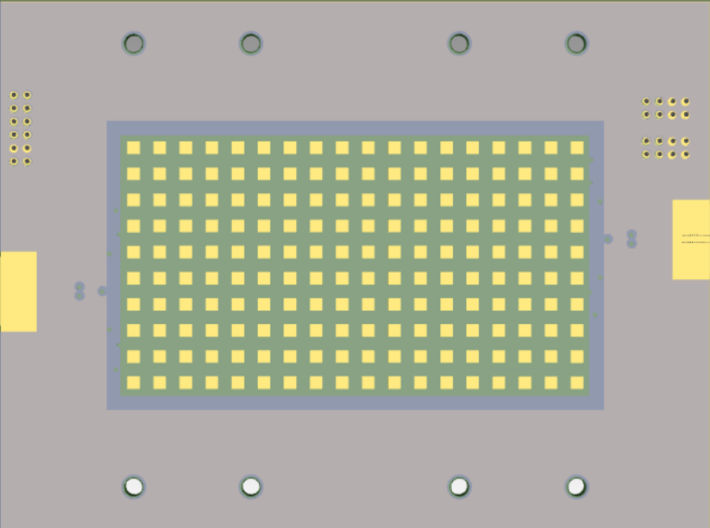

Sivers Semiconductors’ 128-element Summit2629 Array board is designed to meet the demanding requirements of modern wireless communication systems. This state-of-the-art array board is engineered for high efficiency and exceptional linearity, making it an ideal choice for 5G networks and beyond.
Key Specifications
- Excellent EIRP performance of +59.5 dBm @ 3% EVM for full BW 64-QAM OFDM
- Ultra-low TX and RX power consumption.
- TX on: 46.2 W both polarizations @ 3% EVM for full BW 64-QAM OFDM
- RX on: 8.2 W both polarizations
2048-entry on-chip beam table storage
Overview of our Evaluation Kits & Evaluation Boards
| Name | RF Modules | RFIC | Frequency |
|---|---|---|---|
| EVK02004 | BFM02801 | TRB02801 | 24.25 – 29.50 GHz |
| 128 Element Antenna Array | 26.5 – 29.5 GHz | ||
| SUMMIT2629eEVB | N/A | SUMMIT2629e | 26.5 – 29.5 GHz |
| EVK02001 | BFM02003 (The RF module is not a commercial product, only part of the EVK.) | TRXBF02 | 24.0-29.5 GHz |
| EVK03001 | N/A Contact [email protected] for information | TRB03901 | 37.0 – 43.5 GHz |
| EVK06005 | BFM06005 + BFM06010 + BFM06009 | TRXBF01 | 57-66 GHz / 57-71 GHz |
| EVK06003 | BFM06009 | TRXBF01 | 57-71 GHz |
| EVK06002 | BFM06010 | TRXBF01 | 57-71 GHz |
